A Tale of Two Saw Tills - The Beginning

My old saw till works just fine. It didn't end up as quite the saw till that I had originally planned... I had intended it to hold 6 panel or back saws, but I had forgotten about all of the small saws, so in the end I used it for 2 panel saws and 2 back saws, with the small saws mounted on the back. When my two new Medallion saws arrived the old panel saws were relegated to a nail in the dark closet which has become the Purgatory of Unloved Tools. By the time I have my two new Medallion panel saws I must have a reasonably worthy saw till. The old one is simple but effective. The large back holds the small saws in a very visible manner, where they are reasonably easily removed and replaced. The back-saws are even easier to remove and replace. The bottom of the till is a sort of 'bin' that holds dovetail gauges, saw files, and other saw-related things. However, as the bin fills up I worry that I might accidentally (and the thought makes my marrow quake to think upon) scratch the tote of one of my Medallion saws when grabbing a saw file from the bin. This is unacceptable!

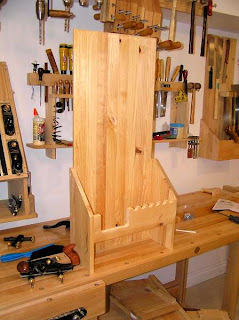

The new saw till will be larger, yes, but it will have a drawer into which to shove the various bits and pieces that now fill the bin. The bin will still have some use, but it will have a vertical divider to keep pointy, scratchy things away from the saw totes. At the right in the picture of the current state of the new till we see that the front wall of the bin has a large cutout. This will allow easier access to the contents of the bin, which will be primarily the saw wax and other things that are used very often. The bin will be smaller than it was before, but more accessible, and not prone to harming the saw totes. The drawer, which will be below the front wall of the bin, will hold the majority of the stuff.
The only things that I have done thus far to try to make this till a bit more visually appealing is to add a shallow rabbet and chamfer to the edges of the back, and chamfer the edges of the sides, etc. The rabbet was wonderfully easy to do with the new skew rabbet planes from the good folks at Veritas... at least until I got to the 'stopped' part. These are stopped rabbets, and it was a pain in the butt to clean up the stopped ends. I tried a few different methods to sort it out, but in the end I just pared them with a chisel.
Some of you might have noticed that the back and sides of the till are all vertical grain, but the front is horizontal grain. This may well come back to haunt me. Particularly with the drawer.
So far so good. OOoops.. 6am already... time to get ready for work.
